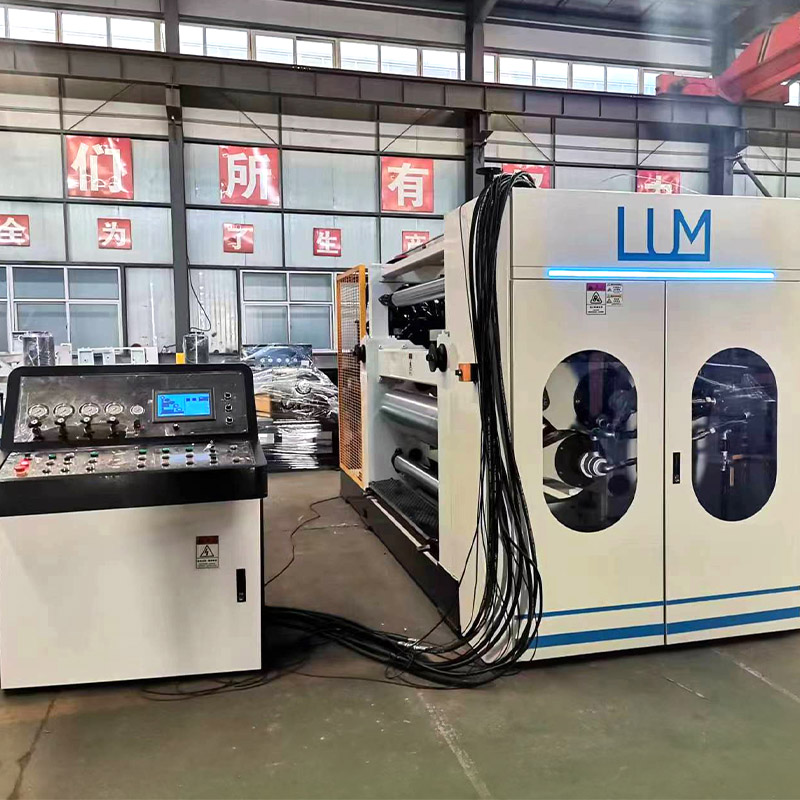

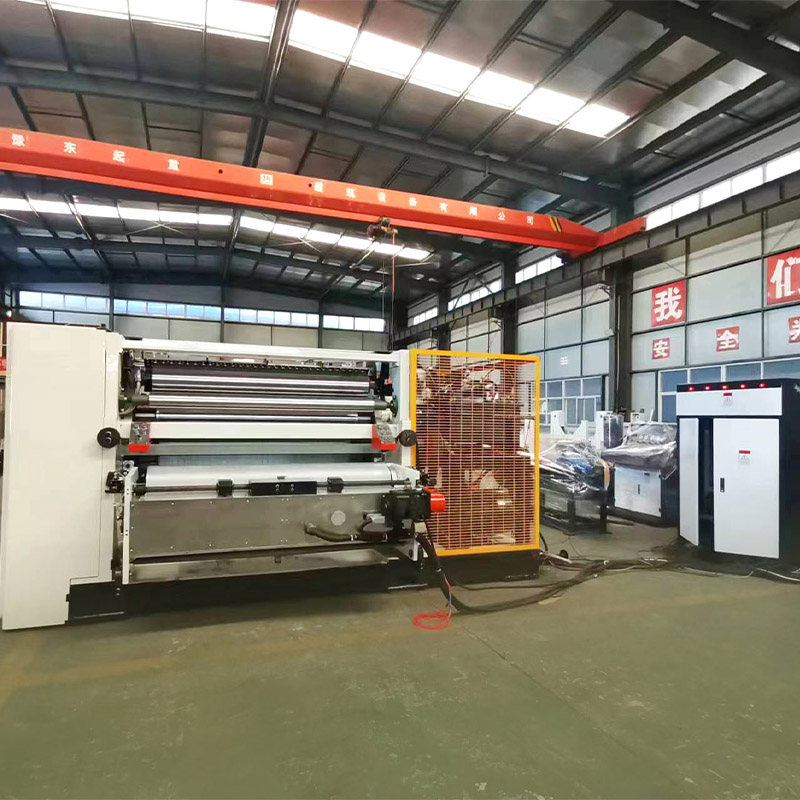

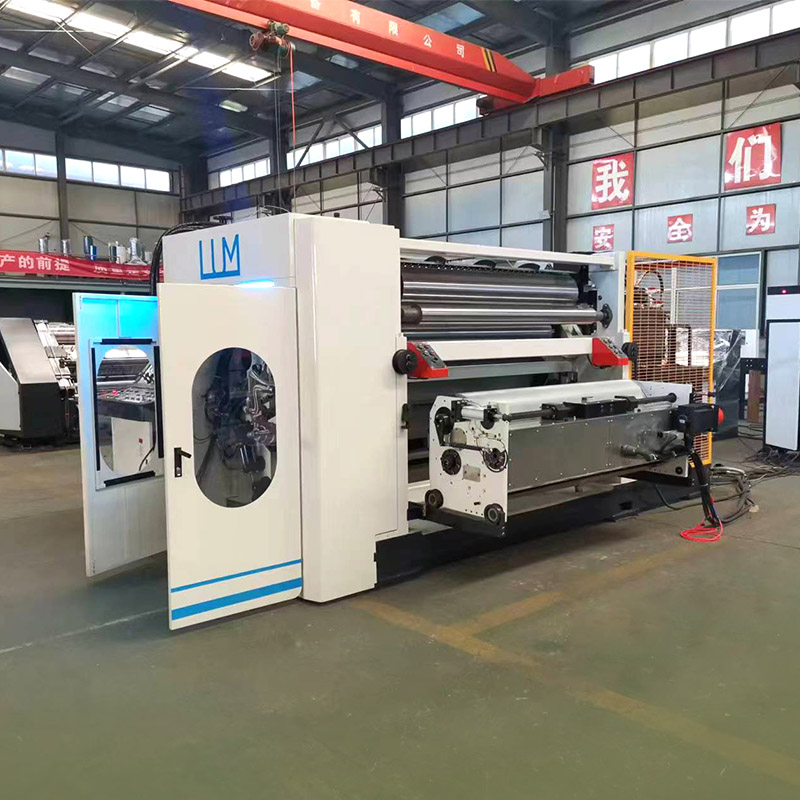

LUM-S Cassette type Single Facer

1) The negative pressure design allows the core paper to be evenly pressed and attached to the surface of the corrugated roller, and glue is evenly applied to make the single-sided corrugated paper fit better.

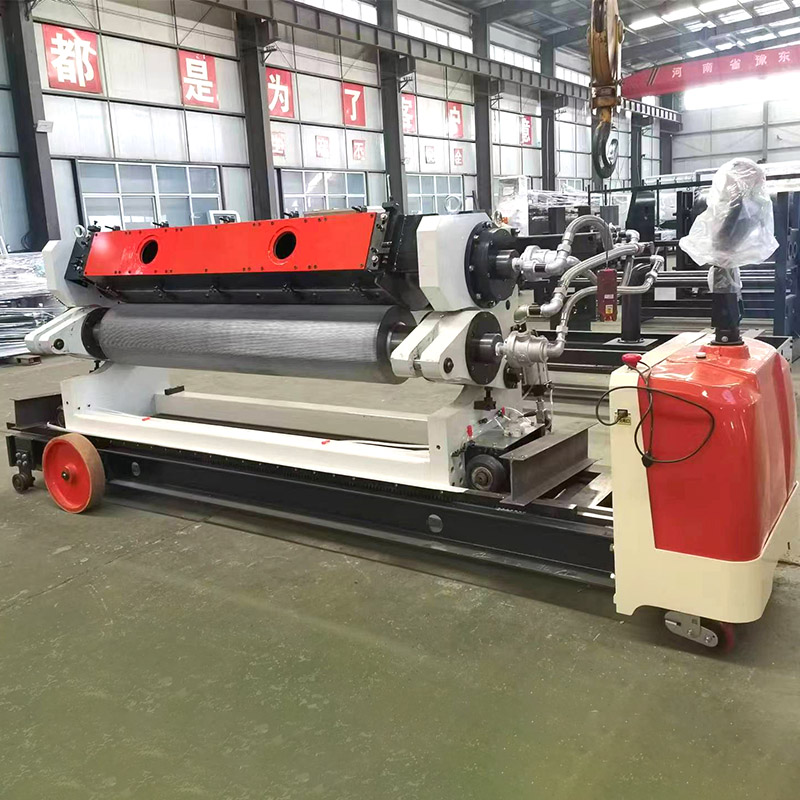

2) The roller can be quickly changed in 15 minutes. When changing the corrugated roller, it is dragged by an electric trolley, sent into the machine, and fixed to the machine base...

Parameter
Video
Related products

Parameter

Technical parameter:

NO.	Name	Specifications
1	Working width	1400 - 2800mm
2	Design speed	300m/min

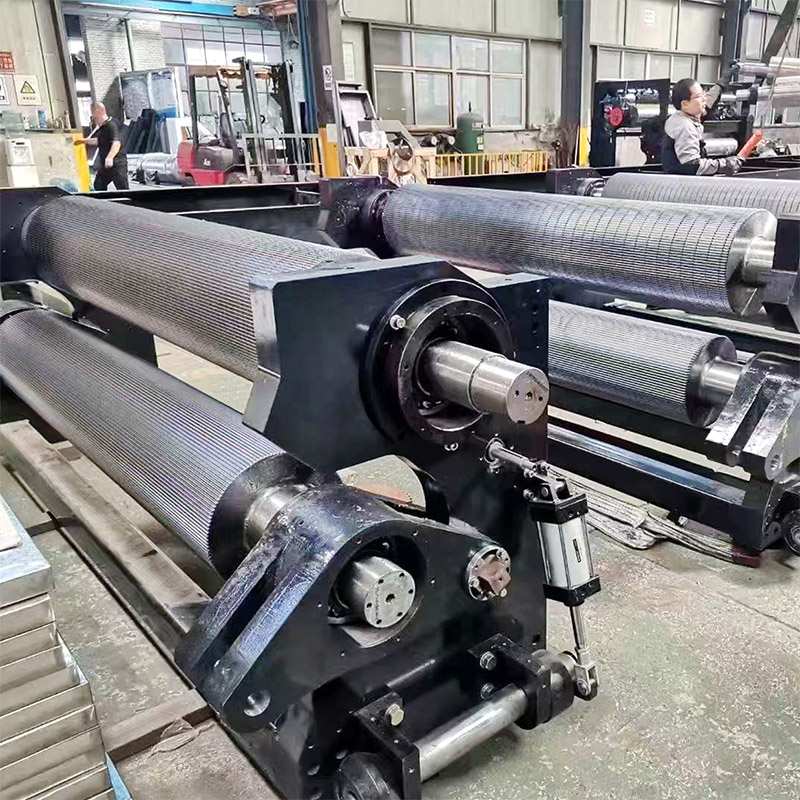

3	Corrugated roller diameter	Dia.Ф320mm	Dia.Ф360mm	Ф408mm
4	Adopt negative pressure type design,which help medium paper to press evenly and closer to the surface of corrugating roller,and also get even gluing on the flute tip to have perfect laminating of corrugated paper.
5	Quick change roller in 15mins, use electric trolley to load and delivery corrugate rolls unit into host machine while replacing corrugated rolls,then fixed on the basement of host machine,it achieve corrugated roller replacement quickly and easily.
6	Corrugate roller,pressure roller and glue roll are adopted with high stability of the airbag control system,also with pneumatic control buffer effect.
7	Adopt electric adjust glue width and amount,pasting device run independently,when the host stopped,to prevent the paste dry.
8	Simple operation control system,PLC touch-screen interface, with colorful display operating status, easy to operate.
9	Fitted with foggy sprayer device, to regulate temperature and moisture of core paper.

Pictures of our factory

Founded in 1999, covering an area of more than 20,000 square meters, we are a high-tech enterprise integrating R&D, production, sales and service. We tailor-made according to customer needs, recognized and trusted by the majority of customers, the equipment is exported to more than 80 countries around the world.
