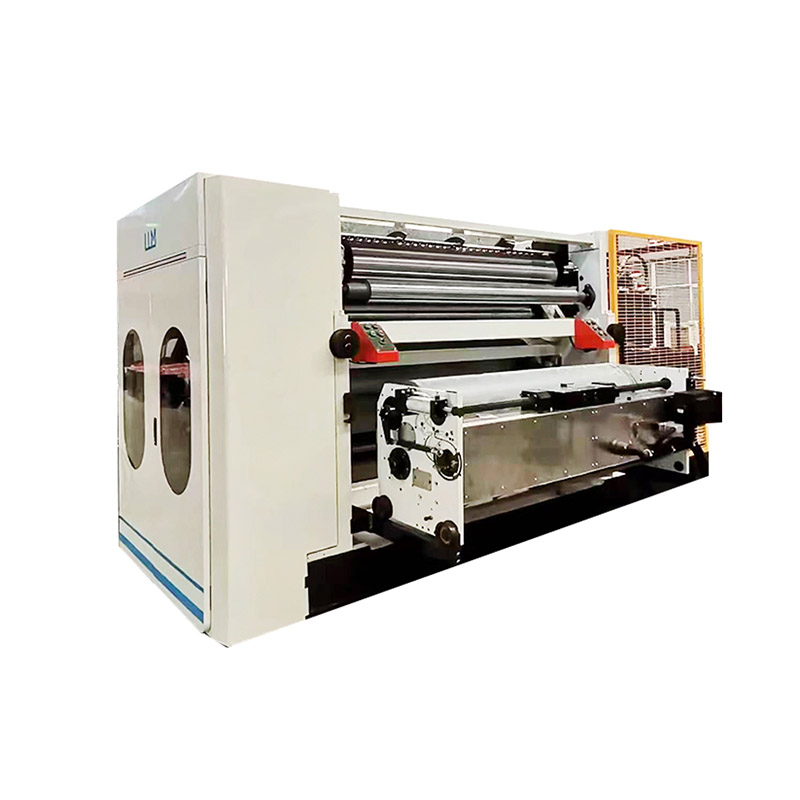

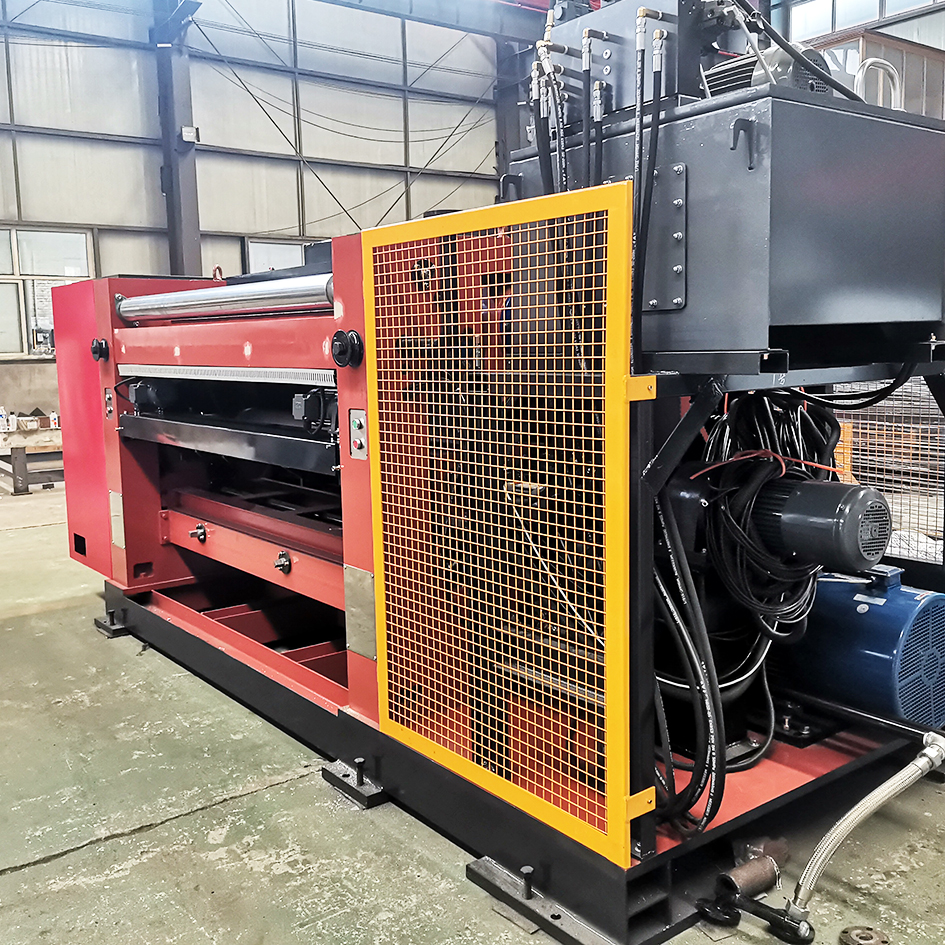

LUM-C Heavy Fixed Type Single Facer (Modular type), China LUM-C Heavy Fixed Type Single Facer (Modular type) Manufacturers, Suppliers, Factory - Hebei Lincheng Packaging Machinery Manufacturing Co., Ltd

Parameter

Technical parameter:

NO.	Name	Specifications
1	Working width	1400 - 2200mm
2	Design speed	200m/min
3	Thickness wallboard	Casting HT200/ thickness 240mm
4	Corrugated roller diameter	Φ380mm/52CrMo alloy steel
5	Pressure roller diameter	Φ380mm /45# steel
6	Preheating roller diameter	Φ400mm/45# steel
7	Glue roller diameter	Φ240mm/45# steel
8	Corrugated roller adopt 52CrMo high quality alloy steel,quenched and tempered,hardened,polished surface,corrugated diameter Ø380m,surface hardness HRC60 degrees;Adopt pneumatic cylinders control up and down of corrugated roller.
9	Gimble drive,with independent driver box.Enclosed gear oil immersion lubrication, extend the life of the gear.
10	Glue roller and glue roller are designed to groups guide way slippage,debug and conveniently;Corrugated roller unit is designed with host machine separately,easy for lift outside and change other type flute roller.
11	Vacuum adsorption to guide paper with a strong high-pressure turbine.With wind control device machine suction silencer.
12	Adopt electric adjust glue width,coated paste run independently,when the host stopped,to prevent the paste dry.
13	Glue amount with electric adjustment and digital display,easy to operate.(Fitted with foggy sprayer device for paper pre-heater; PLC touch screen can be chosed!)

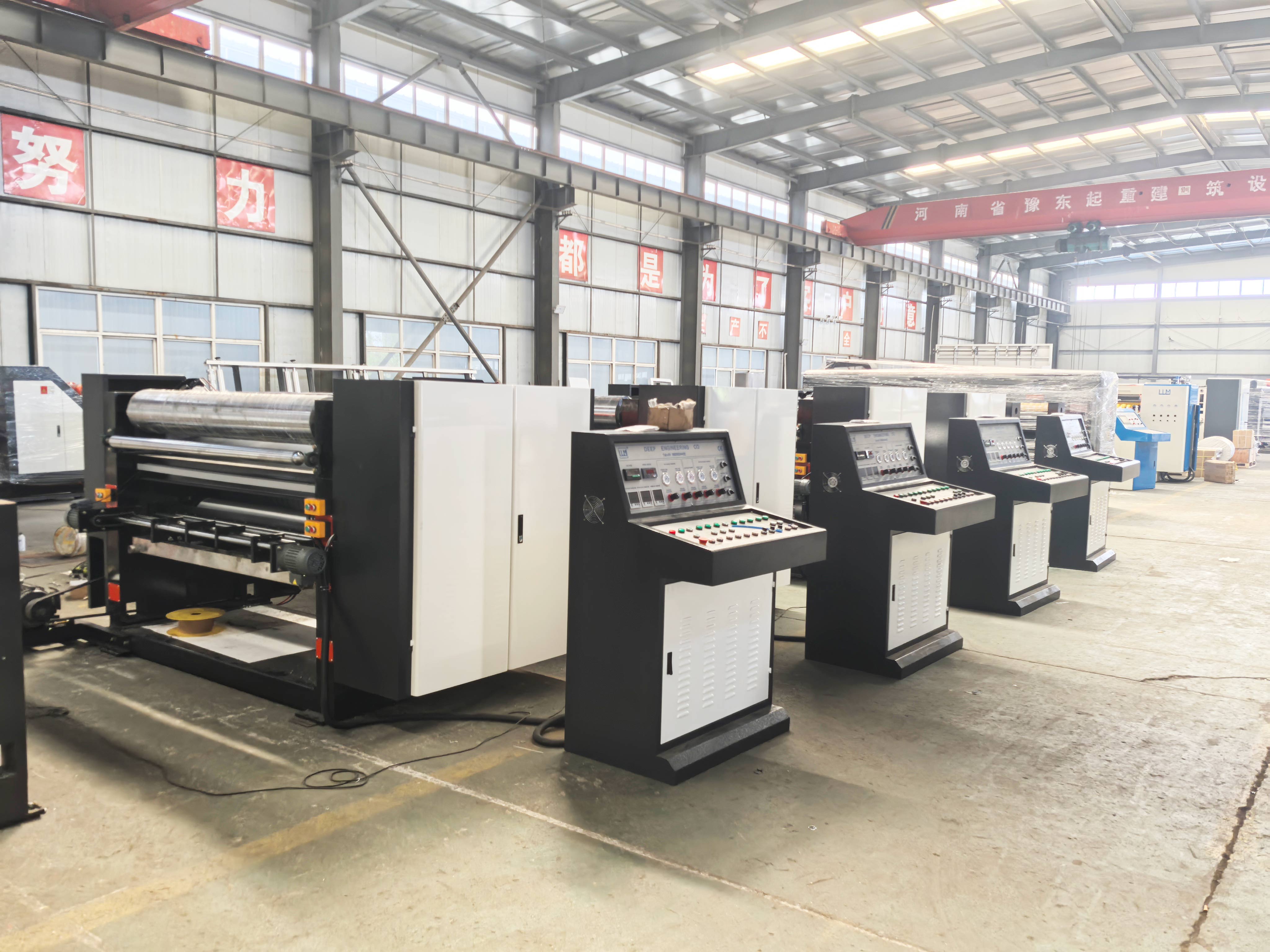

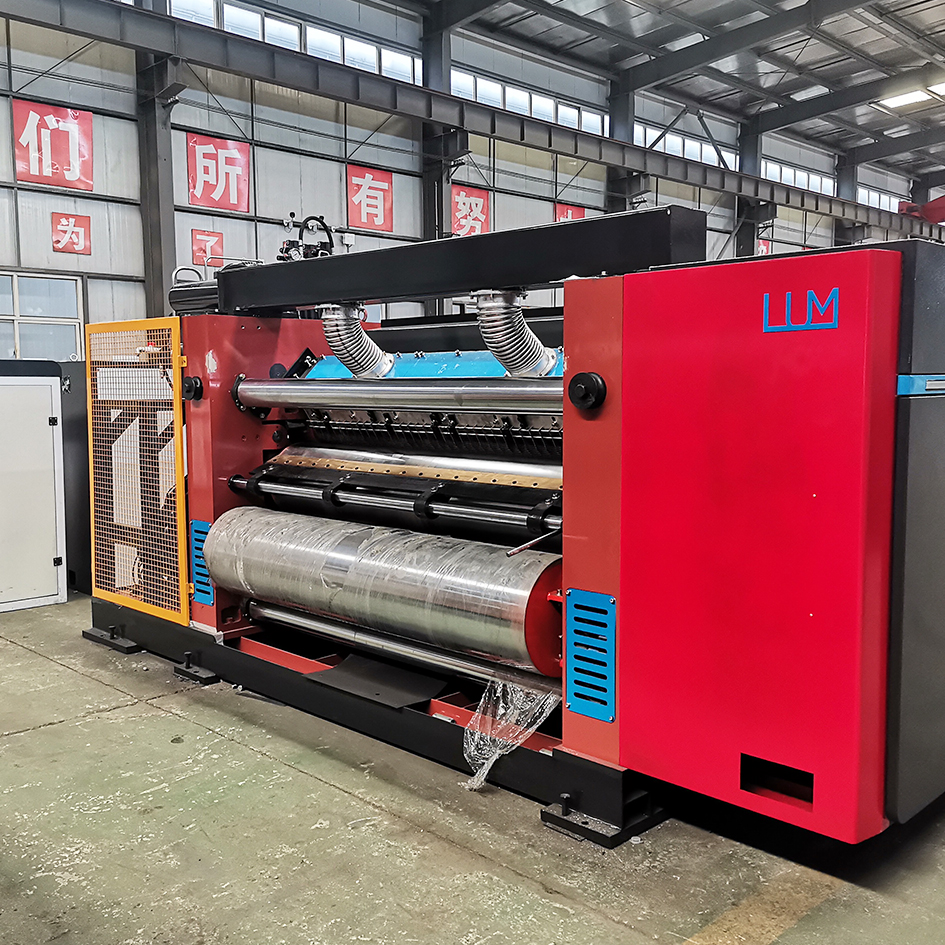

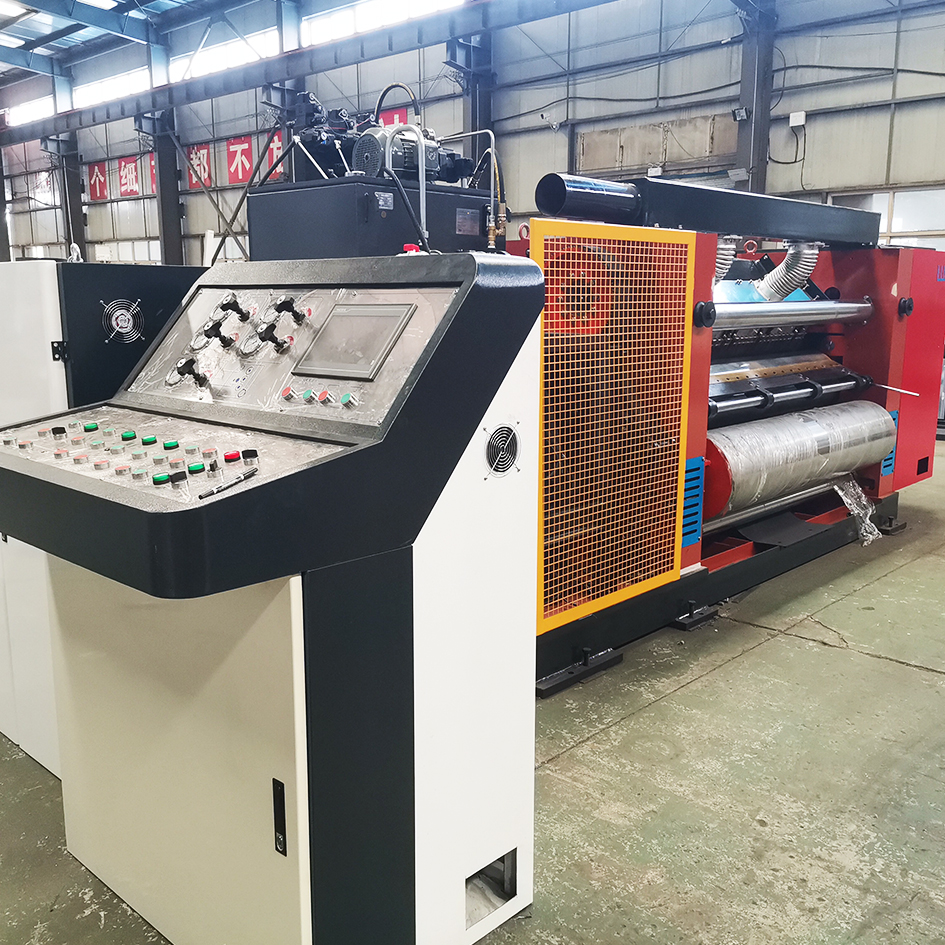

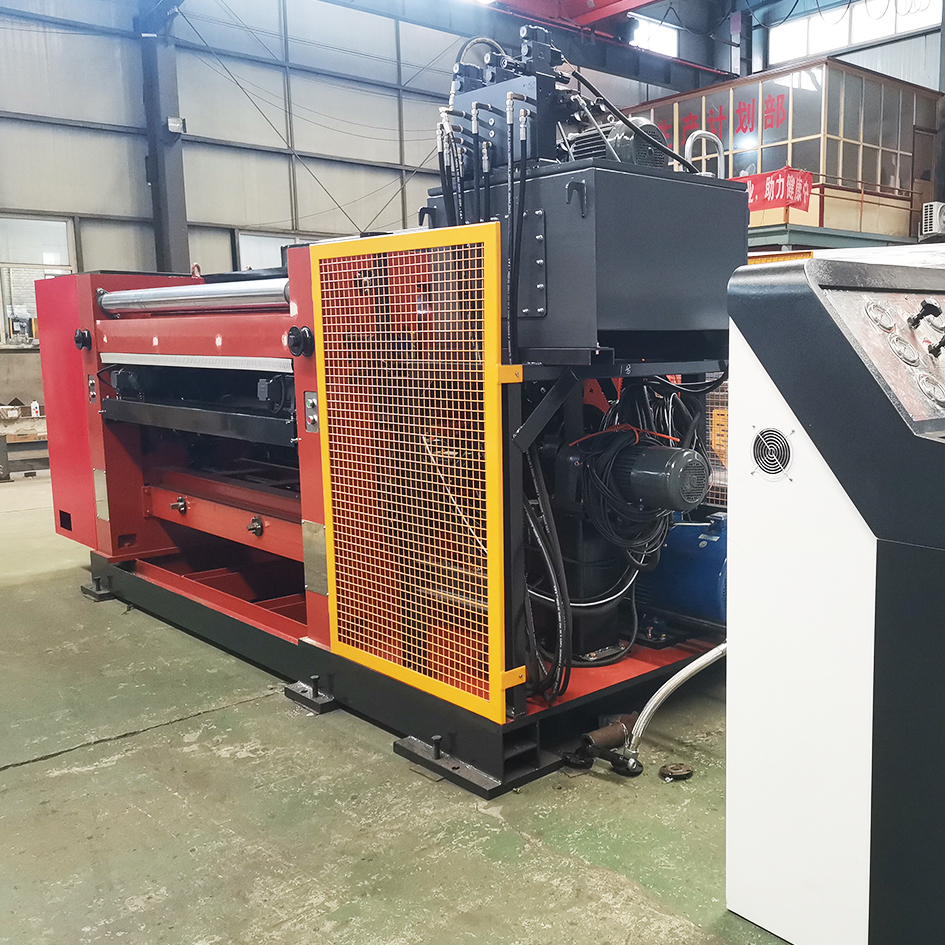

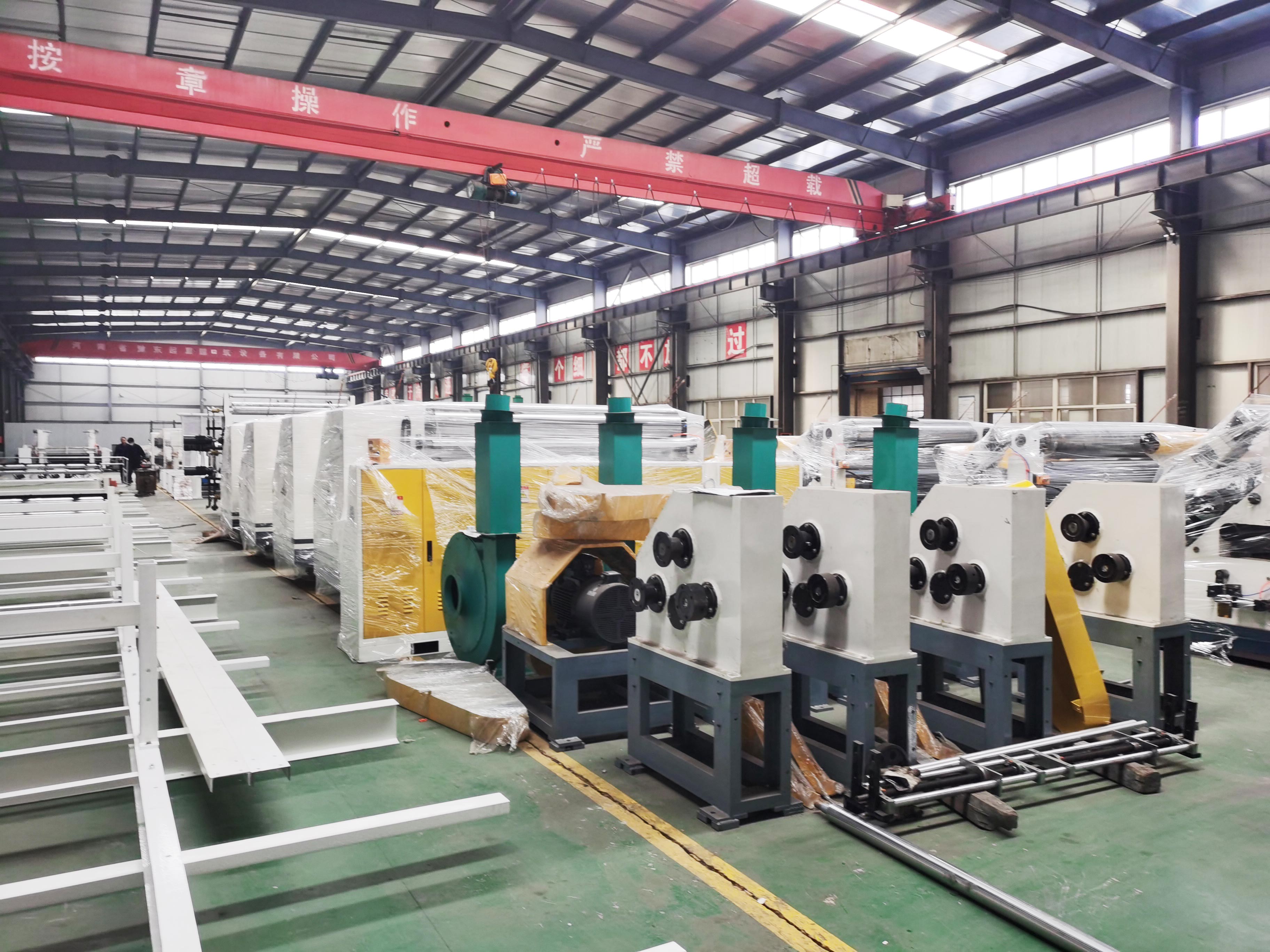

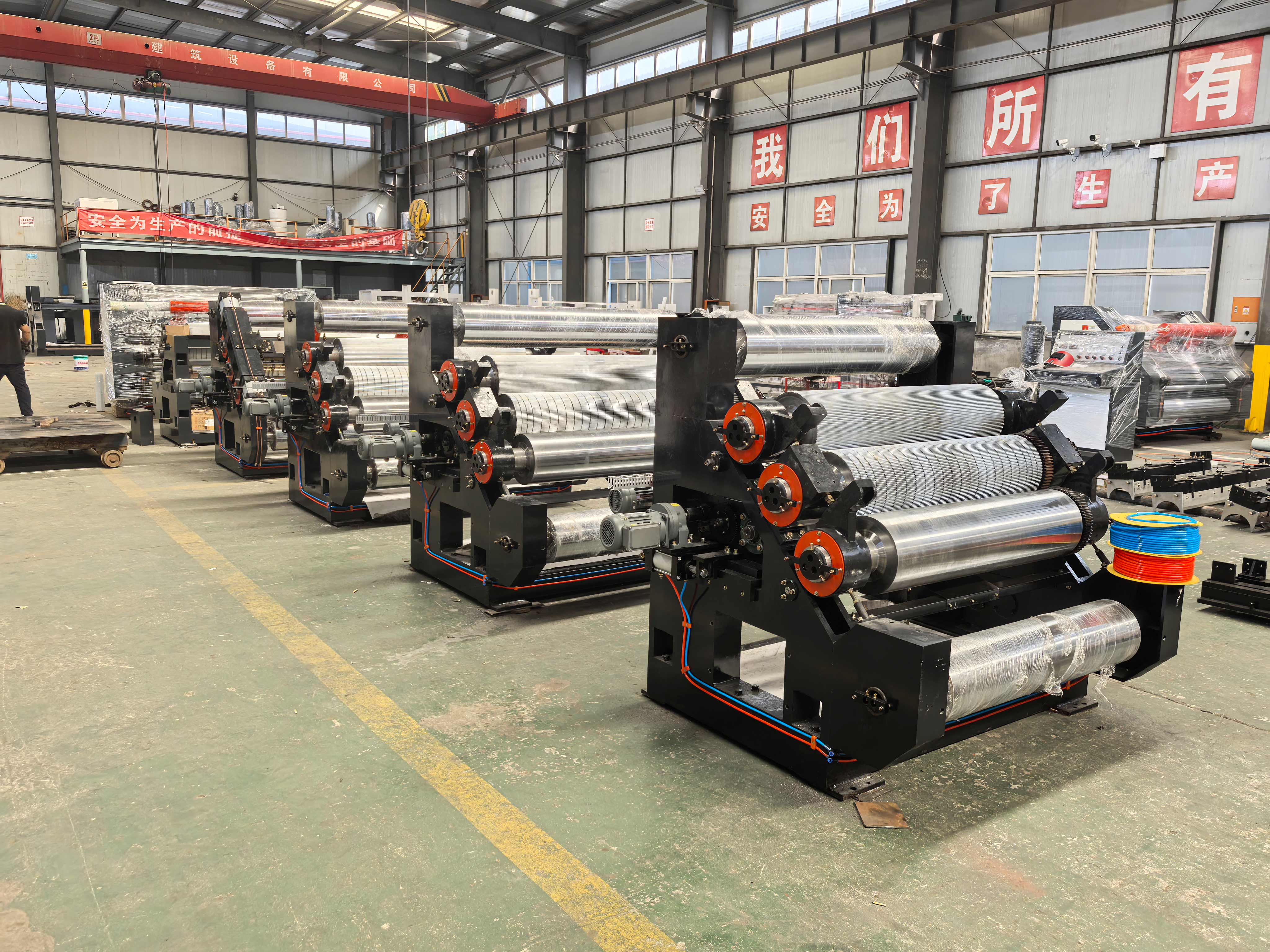

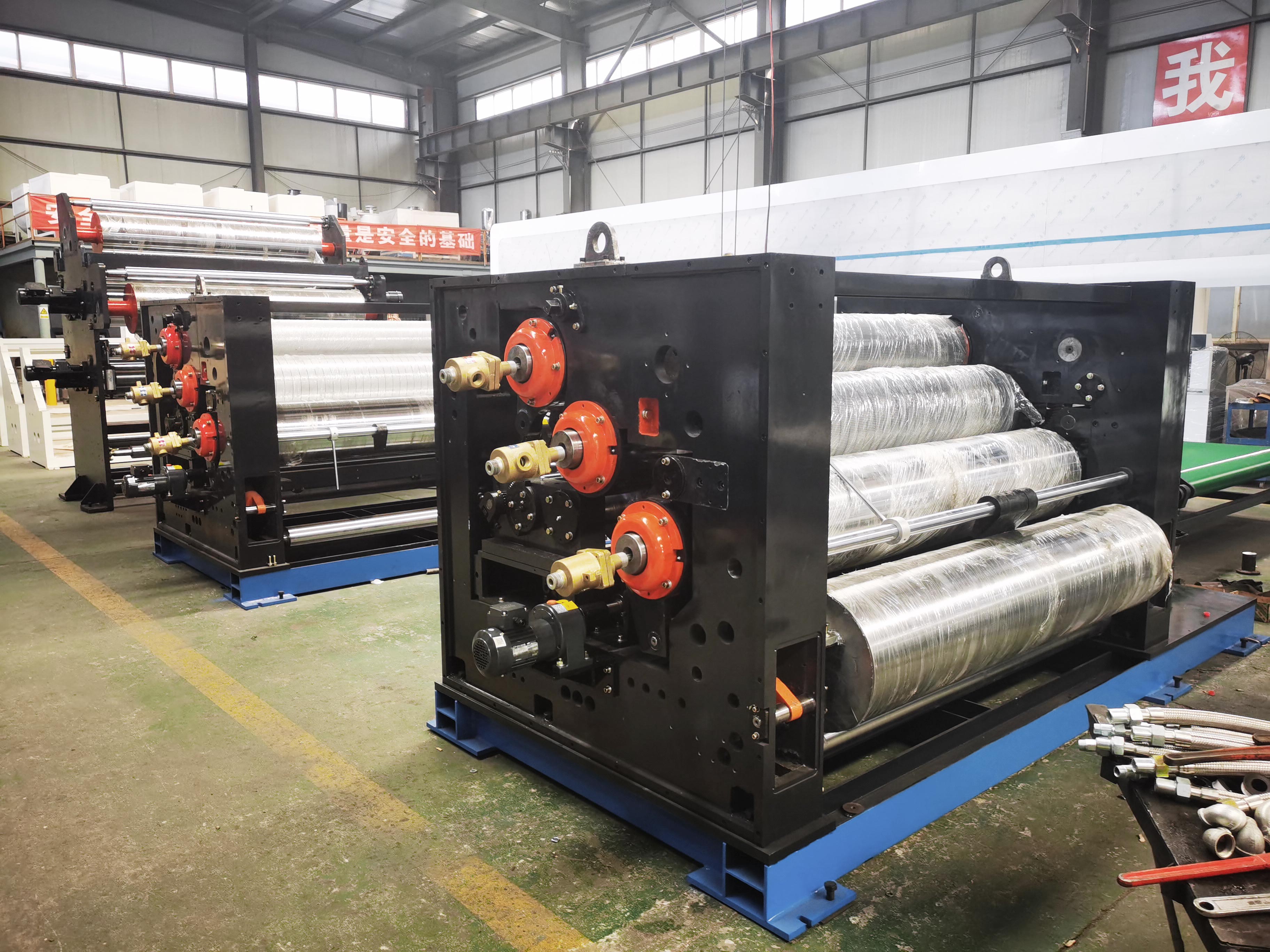

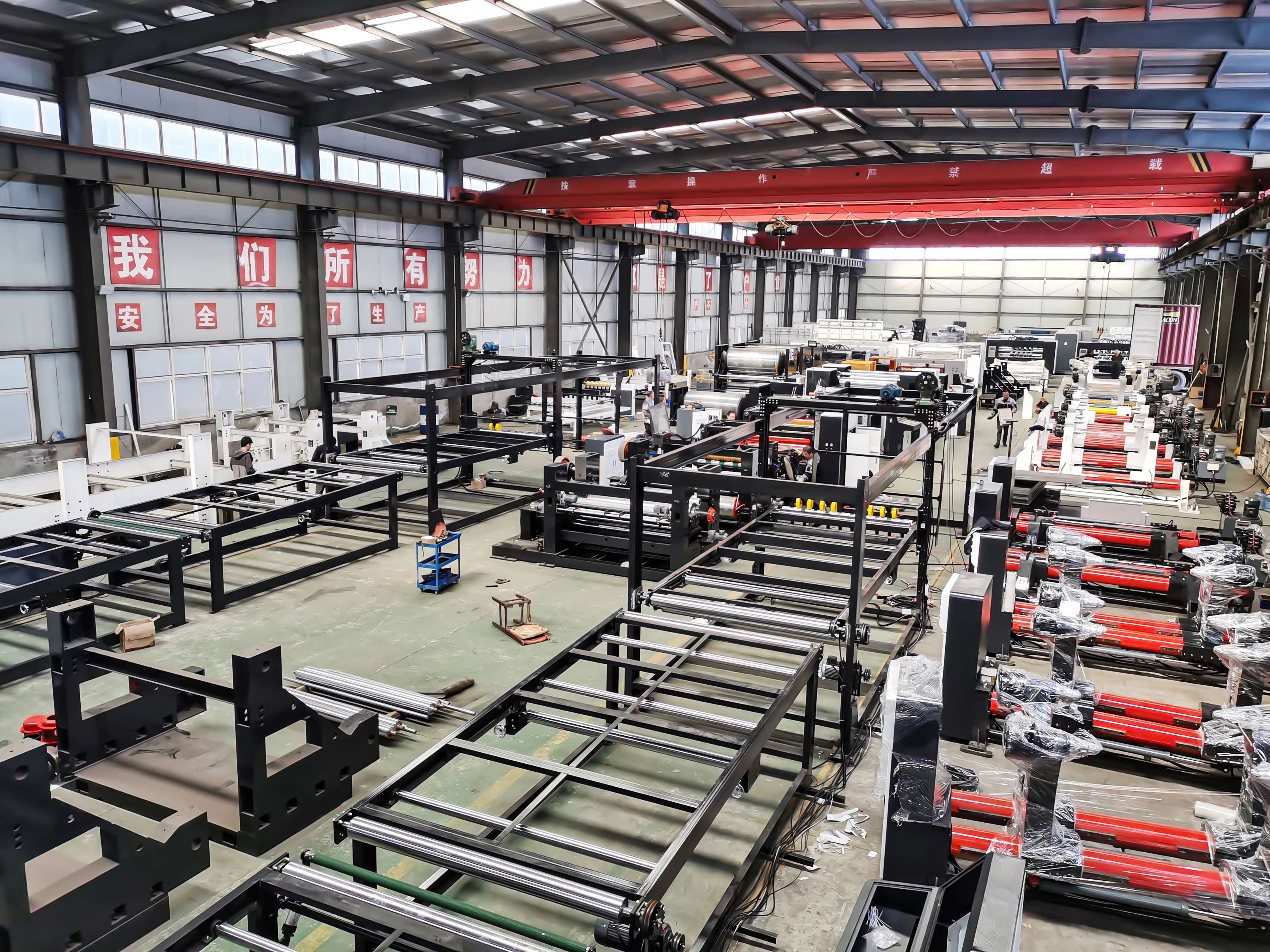

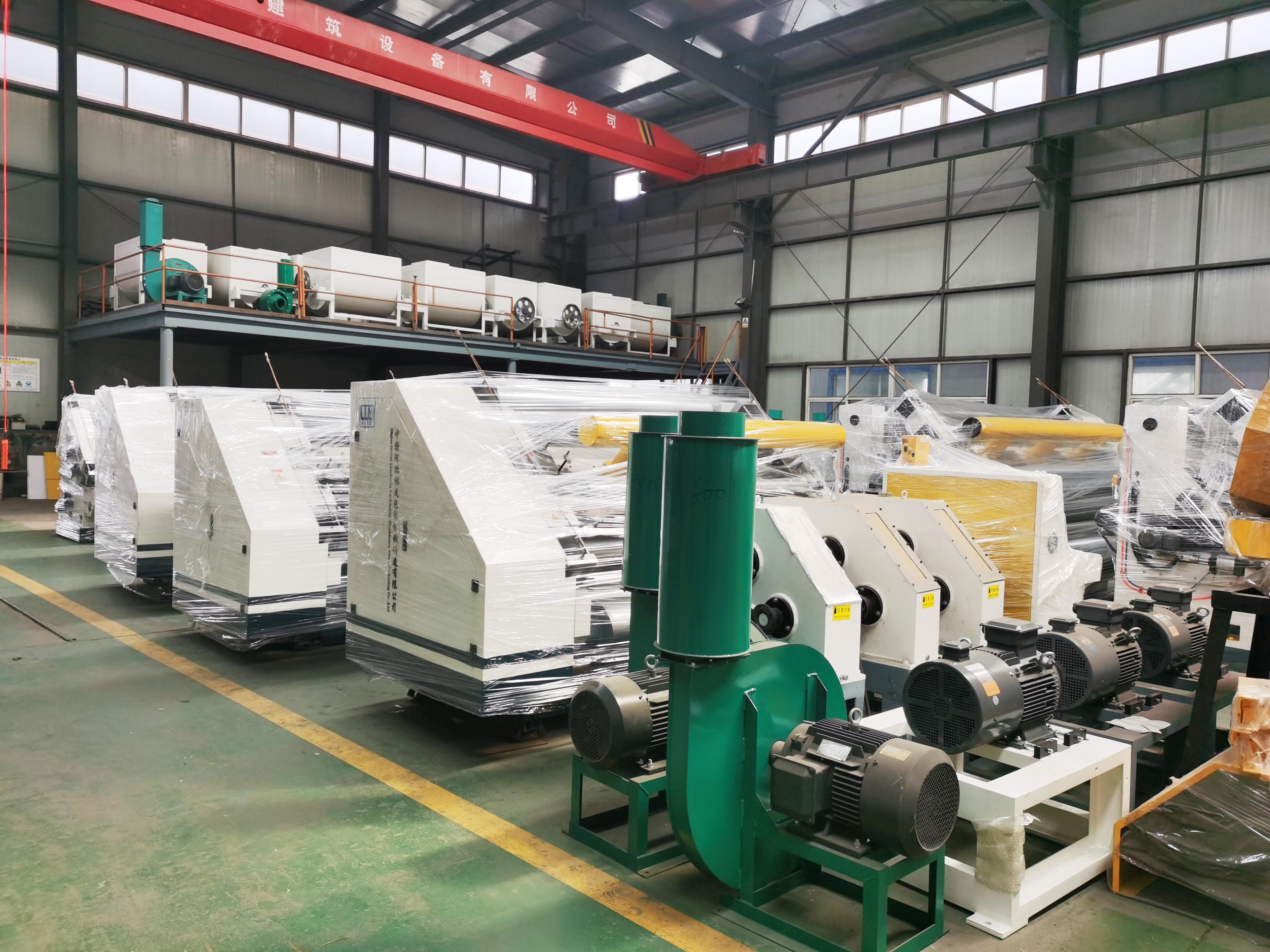

Pictures of our factory

Founded in 1999, covering an area of more than 20,000 square meters, we are a high-tech enterprise integrating R&D, production, sales and service. We tailor-made according to customer needs, recognized and trusted by the majority of customers, the equipment is exported to more than 80 countries around the world.
