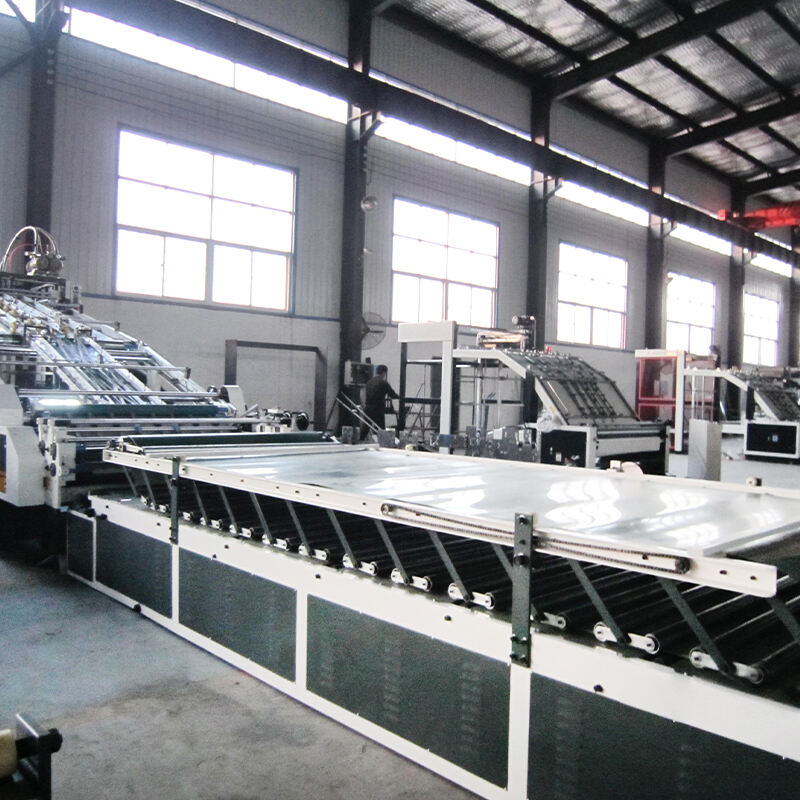

LUM-B Semi-Automatic Flute Laminating Machine

LUM-B Semi-Automatic Flute Laminating Machine

Major feature:

1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efﬁcient.

2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead...

Parameter
Related products

Parameter

Model	LUM-1300	LUM-1500	LUM-1600
Max size of cover face	1300mm×1200mm	1500mm×1200mm	1600mm×1200mm
Mix size of cover face	360mm×360mm	360mm×360mm	360mm×360mm
Economic speed	0-100 slice /min	0-100 slice /min	0-100 slice /min
Laminating precision	±1	±1	±1
Main power	6KW	6.5KW	6.5KW
Dimension	8.8M×1.95m×1.7m	8.8M×2.15m×1.7m	8.8M×2.25m×1.7m
Weight	About 3t	About 3.5t	About 3.5t

Major feature:

1.The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efﬁcient.

2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.

3.New concept front gauge location, position high accuracy, bottom sheet never pull ahead.

4.Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.

5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.

6. Roller design scientiﬁcally, avoid glue ﬂy out when the speed is high.

7. Pressure rollers adopt one side adjustment, convenient and fast.

8. Rocker controls wash roller's ﬂuctuation, easy cleaning.

9. Counter designs scientifically, easy recording the amount you have been worked.
